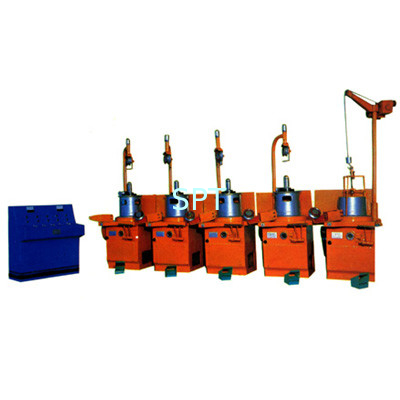

LW1-6 350Wheel Type Wire Drawing Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Standard: | ASTM,AISI,JIS,GB,DIN | Application: | Manufacturing |
|---|---|---|---|
| Wire Gauge: | 0.1-3mm | Type: | Galvanized,Drawn Wire,spring Wire,soft Stainless Steel Wire,SAIP/SAFS |
| Steel Grade: | STEEL | Certification: | ISO,Mill Test Report Or The Third Party Test SGS Etc,SGS,ISO/BV/SGS/CE |
Type: LW1-6/350
Description: Model LW1-6/350 wiredrawing machines, drived by advanced gears, are capable of drawing rod wire of high-,medium-,low-carbon steel,copper,aluminium,ect.and are appliable to such manufacturing industries as wood screw,nail, conducting wirerope for elecitrician use,spring,etc. With electrical control,this kind of machine is safe in operation,low in noise,and high in effciency.
Specifications: Specifications: Modle : LW1-6/350
Diameter of the spool(mm) : 350
Drawing range(mm) : from 2.6-1.5 to 1.2-0.7
Speed of the spool(rpm) : 70.6-227.5
Power of a single machine(kw): 4-5.5
Weight(kg) : 700
External dimensions(LxWxH)(mm) : 760x580x1400
