Standard: | ASTM,AISI,JIS,GB,DIN | Application: | Manufacturing |
---|---|---|---|
Wire Gauge: | 0.1-3mm | Type: | Galvanized,Drawn Wire,spring Wire,soft Stainless Steel Wire,SAIP/SAFS |
Steel Grade: | STEEL | Certification: | ISO,Mill Test Report Or The Third Party Test SGS Etc,SGS,ISO/BV/SGS/CE |

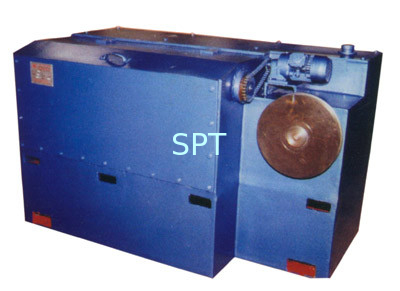

Type: LT1-9/315
Description: This machine is appliable to fine drawing of coppered wires. It's also an ideal equipment to draw wires of copperizing alloyed steel copper and wires of packed copper and wires that are used in communication equipment.
Specifications: 1.Diameter of speed-pacing wheel of finished products:315mm
2.Number of drawing modulus:9
3.Dia of feeding wires:1.2mm
4.Dia of output wires:0.7mm
5.Cumulative reduction:66%
6.Mean pass reduction:11.3%
7.Drawing speed:180m/min
8.Associated motor:(frepuency):Y-132-6-5.5KW
9.Associated motor for the rotary die:Y-4-90W
10.Overall dimension(LxWxH):1500x1000x900mm
11.Weight:1500kg
