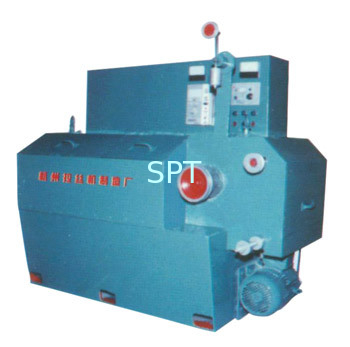

LHT-17 150 mini-fine wire wet drawing machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Certification: | ISO,Mill Test Report Or The Third Party Test SGS Etc,SGS,ISO/BV/SGS/CE | Standard: | ASTM,AISI,JIS,GB,DIN |
|---|---|---|---|
| Application: | Manufacturing | Wire Gauge: | 0.1-3mm |
| Type: | Galvanized,Drawn Wire,spring Wire,soft Stainless Steel Wire,SAIP/SAFS | Steel Grade: | STEEL |
Type: LHT-17/150
Description: This machine is mainly used to draw wires of some non-ferrous metals, black iron wires with high-quality and stainless steel wires.
Specifications: 1.Dia.of spool for finished product:150mm
2.Numder of wiredrawing dies:17
3.Dia.of crude wire:0.45mm
4.Dia.of finished wire:0.12mm
5.Cumulative reduction:92.9%
6.Mean pass reduction:14.4%
7.Wire drawing of finished product cylinder:300-500m/min
8.Power of main electric motor:YCTG160-4A
9.Speed range of the motor:300-1250r.p.m
10.Overall dimension(LxWxH):1500x680x850mm
11.Weight:1200kg
