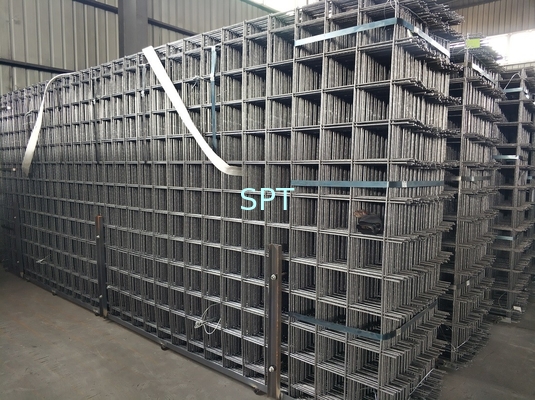

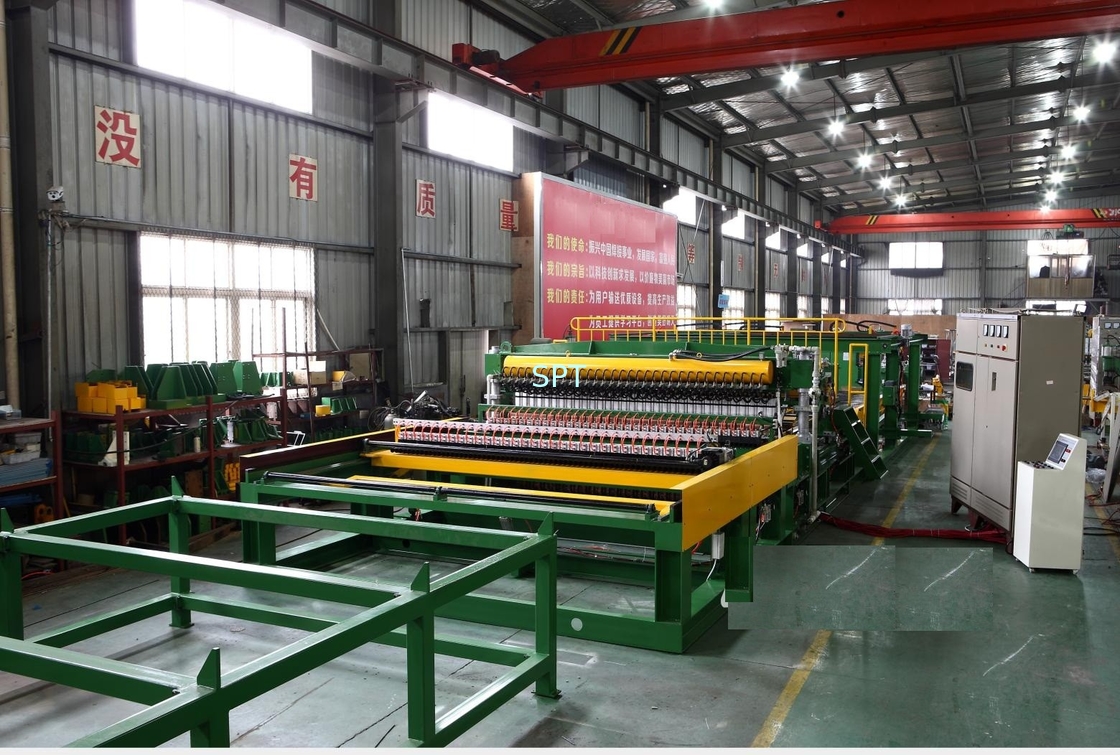

Mesh Welding Machine for Fence
Material Smooth or ribbed weldable wires
Max.mesh width(cross wire length) 2,100[mm]
Max.outmost line wire dimension 2,000[mm]
Max.mesh length(line wire length) 4,000[mm]
Line wire spacing 50-300 [mm],multiples of 50 [mm]
Cross wire spacing ≥50[mm],programmable adjustable
Line wire diameter Ф3-Ф6[mm](off-coil+pre-cut)
Cross wire diameter Ф3-Ф6[mm](pre-cut)
Max.welding capacity Ф6+Ф6[mm]
Max.welding speed 70-90[strokes/min](cross wire no°/min)
Air consumption ≥0.6Mpa,1.5m3/min
Cooling water consumption ≥0.2Mpa,0.5m3/min
1 Line wire vertical pay-offs
2 Line wire positioning and straightening unit
3 Line wire pulling unit
4 Line wire loop & balancing unit
5 Line wire (pre-cut) storage table table and pre-feeding device
6 Line wire step-feeding unit
7 Welding system
8 Cross wire feeding unit(magazine)
9 Mesh puller
10 Mesh cutter
11 Mesh turning and stacking unit
12 Mesh conveyor
13 Electric cabinet and control system
14 Spare parts
15 Tools
16 User's guide (English version)
