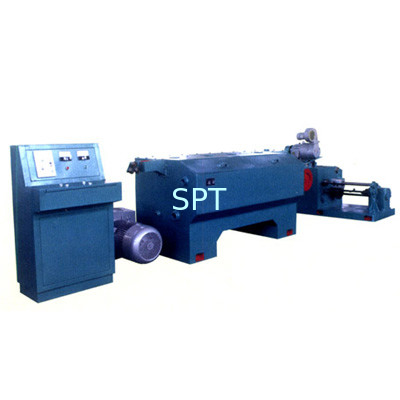

LT-9 450 fine wire wet drawing machine

LT-9 450 fine wire wet drawing machine
LT-9 450 fine wire wet drawing machine

Large Image :  LT-9 450 fine wire wet drawing machine Get Best Price

Product Details:
Place of Origin: China
Brand Name: SPT
Certification: CE, ISO
Model Number: 600mm
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Exporting Package
Payment Terms: TT LC
Contact Now
Detailed Product Description
Standard: ASTM,AISI,JIS,GB,DIN Application: Manufacturing
Wire Gauge: 0.1-3mm Type: Galvanized,Drawn Wire,spring Wire,soft Stainless Steel Wire,SAIP/SAFS
Steel Grade: STEEL Certification: ISO,Mill Test Report Or The Third Party Test SGS Etc,SGS,ISO/BV/SGS/CE

LT-9 450 fine wire wet drawing machine


Type: lT-9/450
Description: This equipment, mainly used to draw wires of nonferrous metals, is appliable to such industries as communication, cable,etc.
Specifications: 1.dia.of the block:450mm
2.quantity of dies:9
3.drawing range:8-7.6mm to 3-2.8mm
5.tensile strength of a feeding wire:≤550N/MM2
6.cumulative reduction:～85%
7.mean pass reduction:～20%
8.range of drawing speed:160-250mm
9.power of an associated motor:YCT355-4/90kw
10.external dimension:3000×1500×1200mm (L*W*H)
11.weight:～6000kg
