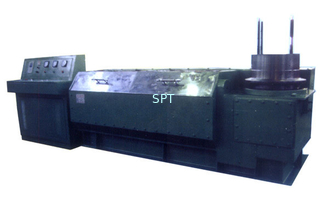

LT1-7 400 fine wire wet drawing machine

LT1-7 400 fine wire wet drawing machine
LT1-7 400 fine wire wet drawing machine

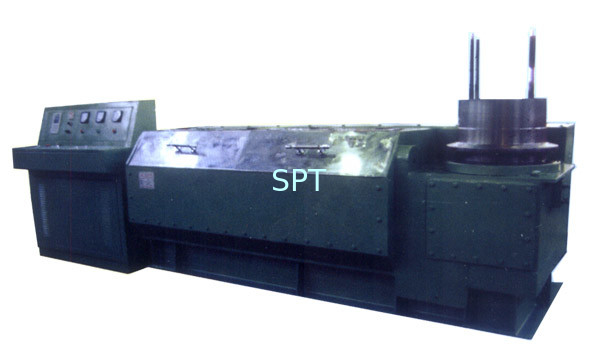

Large Image :  LT1-7 400 fine wire wet drawing machine Get Best Price

Product Details:
Place of Origin: China
Brand Name: SPT
Certification: CE, ISO
Model Number: 600mm
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Exporting Package
Payment Terms: TT LC
Contact Now
Detailed Product Description
Standard: ASTM,AISI,JIS,GB,DIN Application: Manufacturing
Wire Gauge: 0.1-3mm Type: Galvanized,Drawn Wire,spring Wire,soft Stainless Steel Wire,SAIP/SAFS
Steel Grade: STEEL Certification: ISO,Mill Test Report Or The Third Party Test SGS Etc,SGS,ISO/BV/SGS/CE

Type: lT1-7/400
Specifications: 1.maximum tensile strength of feeding wires:∠750N/mm2
2.dia.of a feeding wire:φ3.6mm
3.dia.of an end product:φ2.0mm
4.maximum drawing times:7
5.reduction in area:11～14% (on the last pass:8～10%)
6.dia.of a spool:400mm
7.maximum drawing speed:150～250m/min
8.type of the motor:YVP225s-4/37kw
9.external dimension:3620×1209×1325mm (L*W*H)
