DFT Tube Mill

Direct Forming Technology (DFT) is new technology always aims to simplify the process and save the time and labour.

paving an innovative route of high tech designed methodology to produce ERW Structural Steel Section Pipes.

NEW Technology for Square Tube making with saving invest     and time----Direct Forming Square Tube Mill

DFT tube mill-1

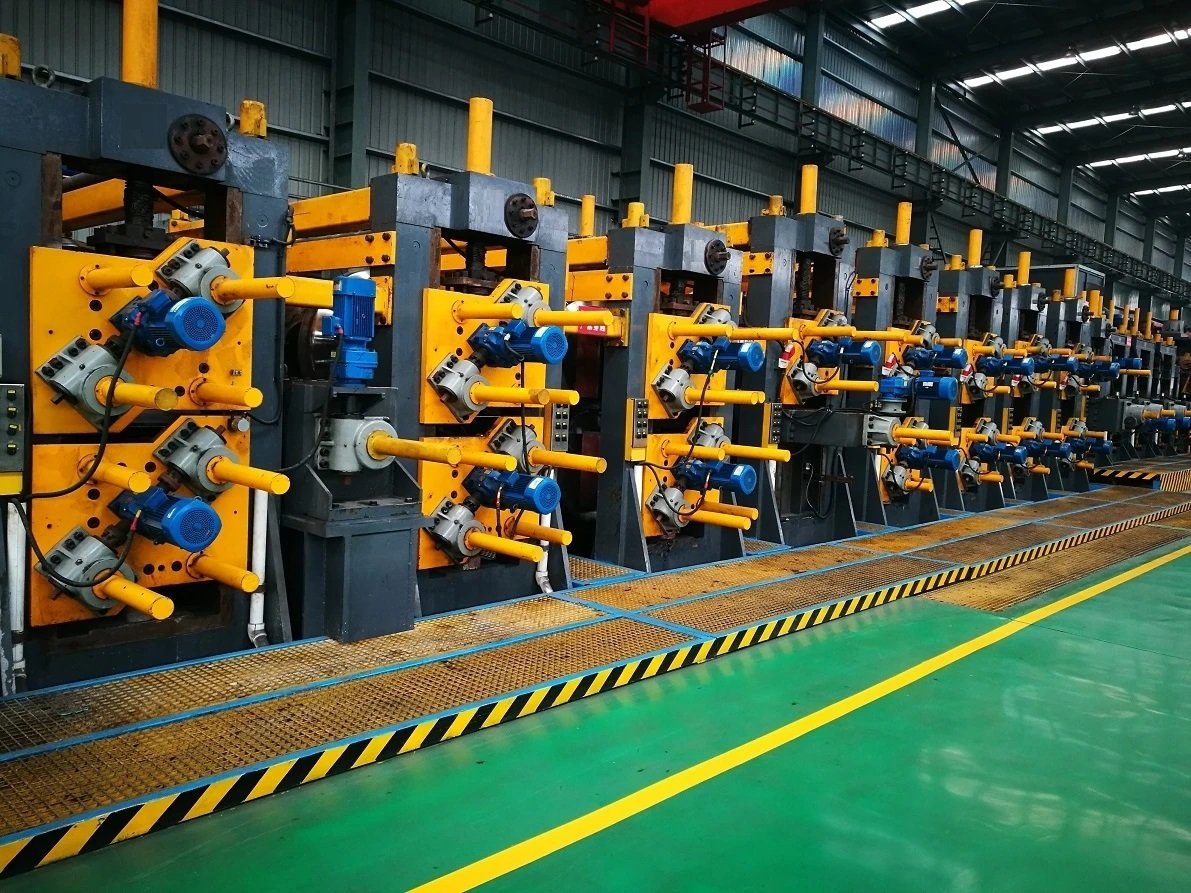

DFT tube mill 2-2
DFT tube mill  61

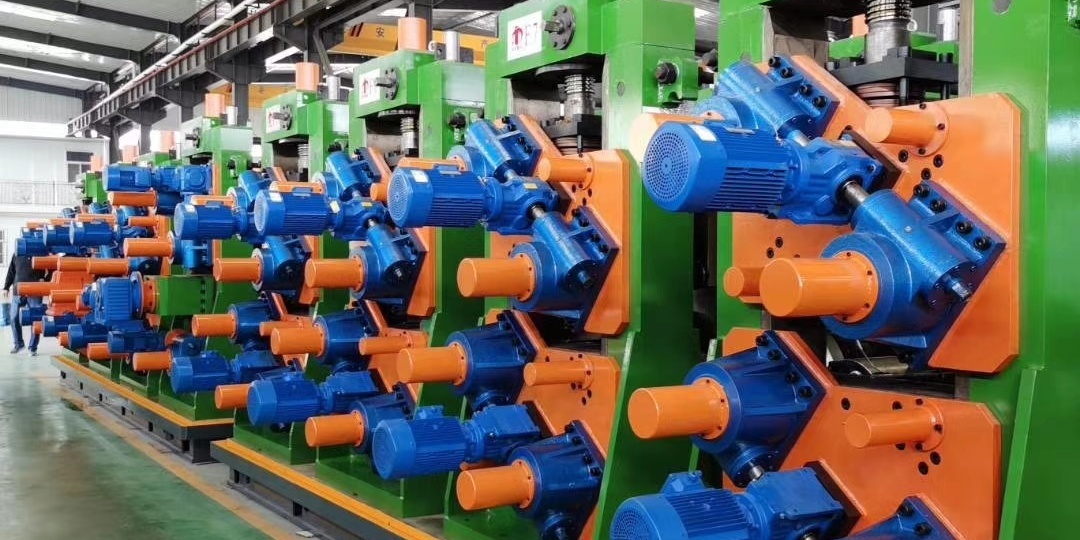

DFT tube mill  76

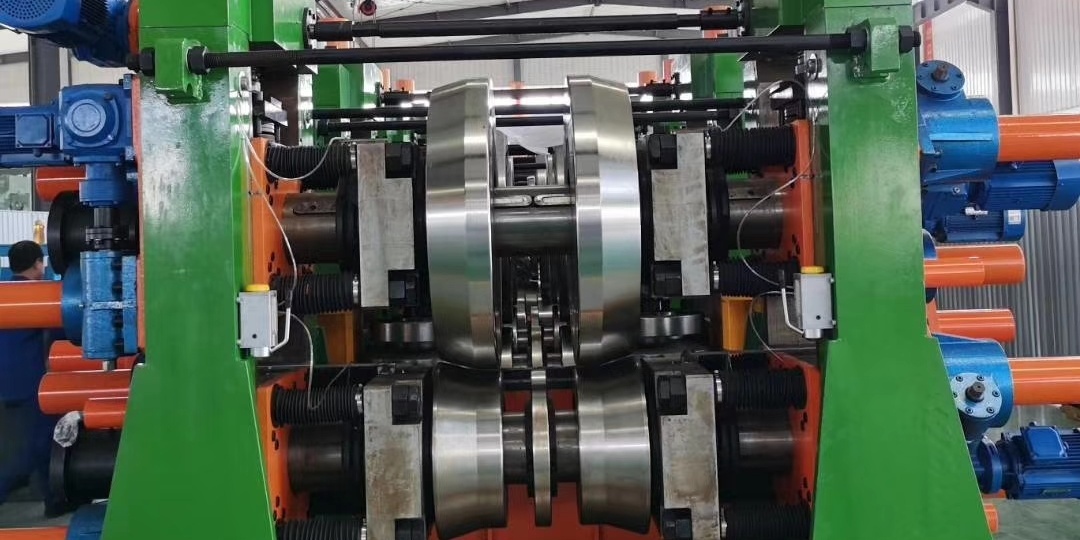

DFT tube mill 26

DFT Tube Mill Technical Features

All-digital, Intelligent and High - precision Directly Forming to Square & Rectangular Tube mill

  • The new forming process is our patented product, representing the most advanced technology level in the world.

  • A high return on the investment. (High efficiency and high capacity, 3-4 persons operating in the line)

  • Great flexibility in production,with a time of 20-30 minutes for roll change. (It achieves non-stop changing size of same specification but different thickness.)

  • High precision (increasing by 70%-90% based on products GB/T6728, EN10219-2 and EN10305-5)

  • Intelligent control (Combined with our company's 20-year practical experience, the commonality  of the hole database has reached more than 99%.)

  • Easy operation and maintenance (Multilingual remote control and maintenance)

DFT tube Mill Type

Model

Specification

(mm)

Thickness

(mm)

Speed

(m/min)

Welding power

Installed capacity

(kw)

Floor space

(m²)

SMLW280

30²-70²

1-4

30-90

400KW

800

10X110

SMLW320

40²-80²

2-6

30-80

400KW

1000

10X120

SMLW400

45²-100²

2-6

25-70

500KW

1200

10X140

SMLW600

60²-150²

2-7

20-60

600KW

1800

12X160

SMLW800

80²-200²

3-10

15-40

800KW

2200

15X180

SMLW1000

100²-250²

3-12

15-35

800KW

2400

16X200

SMLW1200

125²-300²

4-14

10-30

1000KW

3000

18X220

SMLW1600

200²-400²

4-16

10-30

1200KW

3600

20X240

SMLW2000

250²-500²

5-20

10-25

1800KW

4000

24X250


DFT Forming Details

This Mill adopts full auto  forming mode, all the tools for horizontal roll can be commonly used, there is no need of space manual adjusting for tools axial direction adjustied which by online auto electrical adjusting, the side roll adjusting of four-roll stand is auto electrically adjusting.

In the design process using the changing diameter to fix point of principle, the advantage is reducing the loads from metal to rool and roll-to-roll wear while bending at the thinning phenomenon significantly reduced, especially for large diameter, large wall thickness products.

Forming process is divided into solid and hollow bend: the small side and big side arr all solid curved, abrasion and indentation during the strip forming process , ther design for tooling adopts the method of changing active into passive and increase angle,which comprehensive bending and sizing section is hollow curve, which increase the guide sheet on the upper roll of the bending portion, the purpose is to ensure that deflection of the head and tail of strip does not occur during the forming process, and be able to get proper welding open angle.

(1)Small edge deformation (four pass): the production of different product specifications without dismantling the roll, just auto electric adjustment roll lateral movement along the shaft.

2Large side deformation (five pass): the same as the above small deformation adjustment method, wherein the five rolls becomes passive to avoid line speed difference, the lower roller mounting bearing,.

(3) Integrated bending (hollow curve stage) three pass: are flat roll stand with vertical roll frame combined together,when adjusting the upper and lower roller and side rollers are not replaced. The upper roll and guide piece is combined mode, depending on the width of the product to adjust the distance of the guide sheet. The opening adjust for the side roll is electrically along with the product width.

Extrusion welding consists of three parts: a one set of guide vertical roller, hydraulic horizontal adjustment is used to control seam opening angle and mitigate the rolling force suffered from squeeze side roller to facilitate welding. b squeeze roller, do all the specifications, the upper and lower roll, the side rollers are not required to be replaced; to accommodate different widths of products; up or down adjust of side roller is electric complete.with the product height c weld seam polishing, only do one set of the upper and lower horizontal roll.

 Four-roll sizing and straightening racks are universal racks, during adjusting the production of upper, lower and side roll for all specifications are not be replaced, only need displacement adjusting each roll of all specification.
