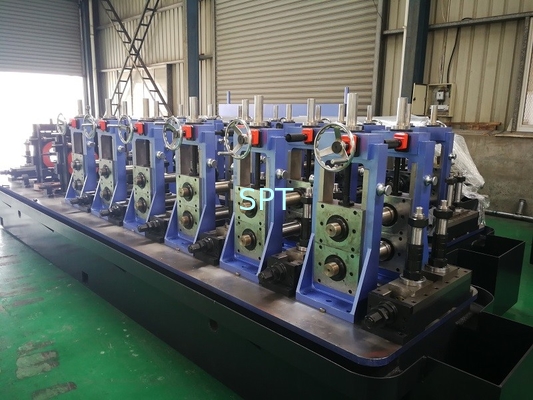

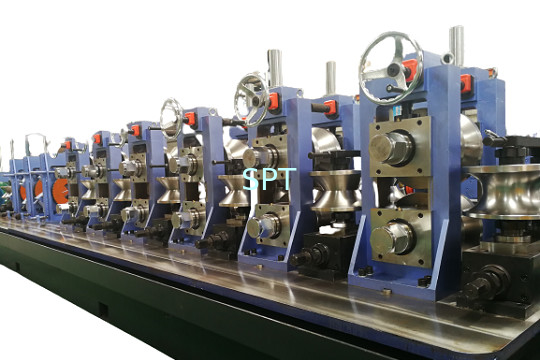

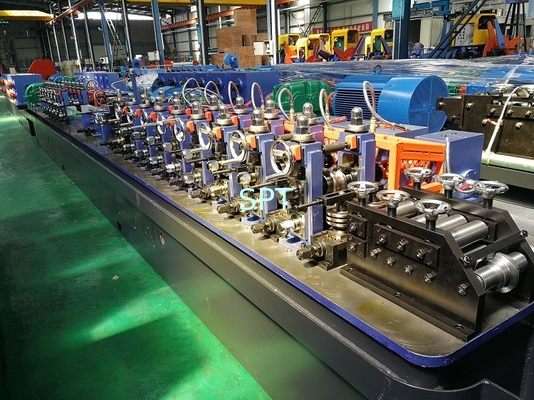

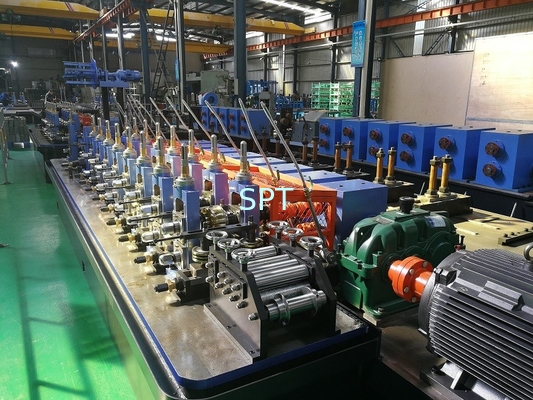

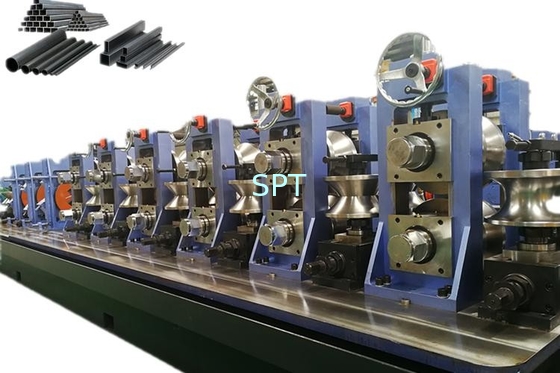

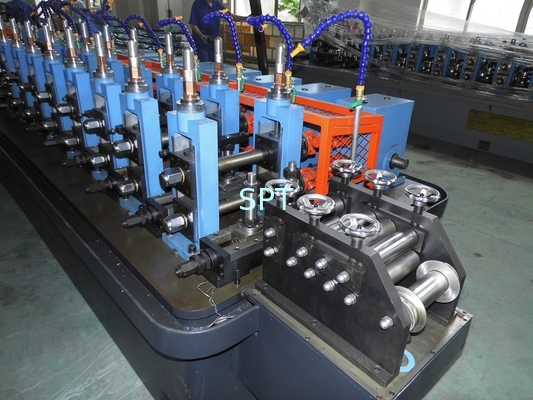

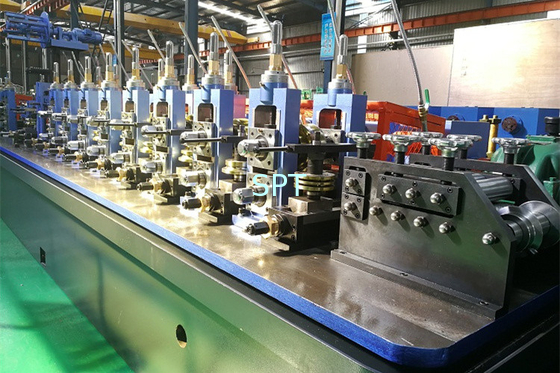

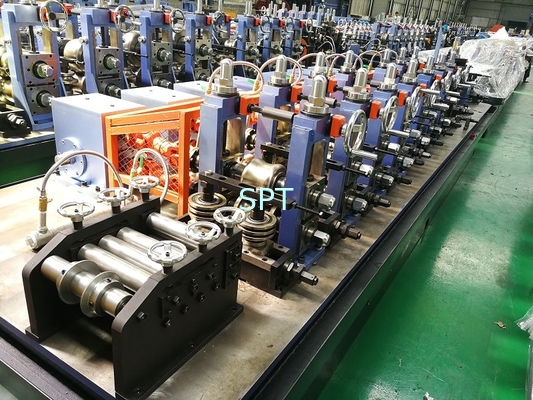

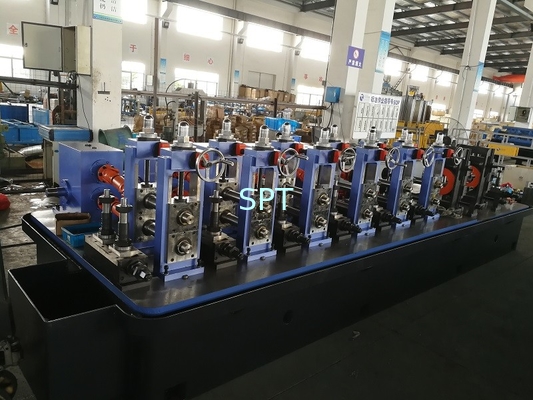

High precision HF steel pipe line

High precision HF steel pipe line
High precision HF steel pipe line High precision HF steel pipe line High precision HF steel pipe line High precision HF steel pipe line High precision HF steel pipe line High precision HF steel pipe line High precision HF steel pipe line High precision HF steel pipe line High precision HF steel pipe line

Large Image :  High precision HF steel pipe line Get Best Price

Product Details:
Place of Origin: China
Brand Name: SPT
Certification: CE, ISO
Model Number: API-219
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Exporting Package
Delivery Time: 90days
Payment Terms: TT LC
Contact Now
Detailed Product Description
Control System: PLC Cooling System: Water Cooling
Drive System: AC Frequency Conversion Forming Method: High Frequency Induction Welding
Lubrication System: Automatic Lubrication Material: Carbon Steel, Alloy Steel, Stainless Steel
Pipe Diameter: 6-508mm Pipe Length: 4-12m
Power Supply: 380V/50Hz/3Phase Product Name: HF Welded Pipe Mill
Wall Thickness: 2-30mm Welding Method: High Frequency Induction Welding

High precision HF steel pipe line

Tube Diameter: 12mm to 219mm
Square section: 9*9mm to 170*170mm
Strip weight capacity: 1.5MT to 10MT
Strip Thickness: 2mm to 6mm
Production Line Speed: 20mm to 140mm
Line Capacity: 100kw to 800kw
Floor area: 4 x 40m2 to 24 x 280m2
Roller: Quick-change system can be choosed
Contral: Automatic
Speed: High speed and high precision

Custom Design

We supply custom design for your request.

High Precision

High Precision of the Pipe diameter

High Speed

Max can reach 150m/min

Service

All lift service



Model Tube O.D. Wall Thickness Square/Rectangle Wall Thickness Speed Main motor H.F. Welder
(mm) (mm) (a:b≤2:1,mm) (mm) (m/min) (KW) (Kw)
SMTY-12 Ø4~Ø12 0.2~0.5 // // 30~120 15 100
SMTY-16 Ø6~Ø16 0.2~0.8 // // 30~120 22 100
SMTY-20 Ø7~Ø20 0.2~1.0 // // 30~120 30 100
SMTY-25 Ø9~Ø25.4 0.25~1.2 // // 30~120 37(or 22*2) 100
SMTY-32 Ø10~Ø32 0.25~1.5 8×8~25.4×25.4 0.25~1.2 30~120 45(or 30*2) 100
SMTY-32z 0.5~2.0 10×6~31.8×19.1 0.5~1.5 30~100 55(or 37*2) 100
SMTY-40 Ø12.7~Ø40 0.3~1.8 10×10~31.8×31.8 0.3~1.5 30~110 75 150
SMTY-40z 0.6~2.0 20×10~40×20 0.6~1.5 30~100 45*2 150
SMTY-50q Ø16~Ø50.8 0.4~1.5 12.7×12.7~40×40 0.4~1.2 30~110 90 150
SMTY-50 0.5~2.0 20×10~50×25 0.5~1.5 30~90 45*2(or 110) 200
SMTY-50z 0.7~2.5   0.7~2.0 30~80 55*2 200
SMTY-63q Ø19.05~Ø63.5 0.6~2.0 15×15~50×50 0.6~1.5 30~90 132(or 55*2) 150
SMTY-63 0.7~3.0 20×10~60×30 0.7~2.5 30~80 75*2 (or 132) 200
SMTY-63z 0.8~3.5   0.8~3.0 20~70 90*2 200
SMTY-76q Ø25.4~Ø76.2 0.8~2.5 20×20~60×60 0.8~2.0 30~90 160(75*2) 200
SMTY-76 0.8~3.5 30×15~80×40 0.8~3.0 30~80 90*2 250
SMTY-76z 0.8~4.0   0.8~3.5 20~70 300
SMTY-90q Ø30~Ø90 0.8~3.0 25×25~70×70 0.8~2.5 30~90 180(or 90*2) 250
SMTY-90 0.8~3.5 30×20~80×40 0.8~3.0 30~80 110*2 250
SMTY-90z 1.0~4.0   1.0~3.5 20~70 (or 132*2) 300
SMTY-100q Ø31.8~Ø101.6 1.0~3.0 25×25~80×80 1.0~2.5 30~90 200(or 110*2) 250
SMTY-100 1.0~3.75 30×20~100×50 1.0~3.25 30~80 110*2 300
SMTY-100z 1.0~4.0/4.25   1.0~3.5 20~70 132*2 300
SMTY-114q Ø35~Ø114.3 1.0~3.0 30×30~90×90 1.0~2.5 20~80 110*2 300
SMTY-114 1.2~4.5 40×20~120×60 1.2~4.0 20~70 132*2 350
SMTY-114z Ø40~Ø114.3 1.2~5.0   1.2~4.5 15~60 350
SMTY-127q Ø40~Ø127 1.2~3.5 40×40~100×100 1.2~3.0 20~70 350
SMTY-127 1.5~5.0 60×30~120×80 1.5~4.5 15~60 160*2 400
SMTY-127z Ø50~Ø127 1.5~5.5   1.5~5.0 10~45 400
SMTY-140q Ø50~Ø141.3 1.2~4.0 50×50~110×110 1.2~3.5 15~60 400
SMTY-140 1.5~5.5 60×40~150×75 1.5~5.0 10~50 180*2 400
SMTY-140z Ø60~Ø141.3 2.0~6.0   2.0~5.5 10~40 500
SMTY-168q Ø60~Ø168.3 1.5~5.0 60×60~130×130 1.5~4.5 10~50 400
SMTY-168 2.0~6.0 80×40~160×80 2.0~5.5 10~50 200*2 500
SMTY-168z Ø76.2~Ø168.3 2.5~8.0   2.5~7.0 10~40 200+132*2 600
  (or 132*4)
SMTY-219q Ø89.1~Ø219.1 2.0~6.0 70×70~160×160 2.0~5.5 10~50 110*2+110*2 500
SMTY-219 3.0~8.0 100×50~200×100 3.0~7.0 10~40 132*2+132*2 600
SMTY-219z 4.0~10.0   4.0~9.0 10~40 132*2+160*2 800
SMTY-273 Ø114.3~Ø273 4.0~10.0 90×90~200×200 4.0~9.0 10~40 160*2+160*2 800
SMTY-273z Ø114.3~Ø273 4.5~12.0 120×60~260×130 4.5~11.0 10~35 180*4 800




High precision HF steel pipe line 0
