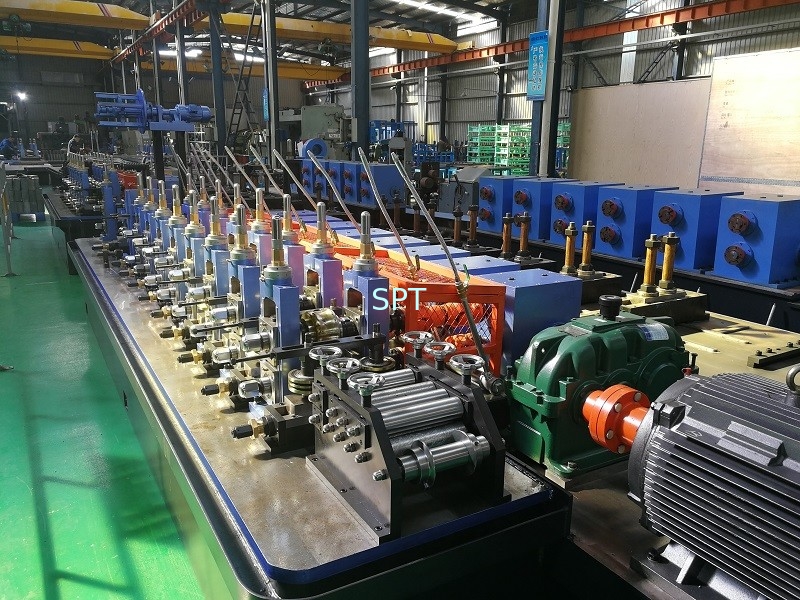

45 HF Welded Pipe Mill

I Summary:

45-2.0 High frequency welded pipe production line is used to produce EMT tube and cold bending profile steel with material of mild steel & low carbon steel of cold and hot roll carbon steel and galvanized roll carbon steel (CR, HR & GI) in the fields of metallurgy, construction, traffic, mechanism and vehicle. It can make steel strip of a certain specification into round pipe and square and rectangular pipe through cold bending forming and high frequency welding. The forming and sizing machine is designed well, so it can produce the perfect pipe.

II Main technical specification

1,Raw material request

Material of strip:HR/CR carbon steel

Grade: σb≤600MPa,σs≤315MPa

Strip OD: φ900mm-φ1600mm

Strip ID: φ508mm

Width: 50-180mm

Thickness: 0.6—2.0mm

Strip weight: Max 3Mt (3000kg)

2, Pipe size:

Round pipe:

OD: φ17～φ56mm(½”---2”)

Thickness: 0.6—2.0mm

3, Layout:

Form: Separated pe

Disposal: Feeding from side (the location of control desk will be decided by customer)

Line speed: 0～80m/min

III Technology process

Uncoiling->Shearing and butt welding-> Vertical storage box ->Leveling->Forming unit->High-frequency welding->Deburring->Cooling->Sizing unit->Straightener->Flying saw->Run-out table
