①Type of tube mill: Φ406tube mill
②Tube O.D.: Φ114~Φ406mm
③Wall thickness: 4.0~12.7mm
④Type of pipe: round pipe

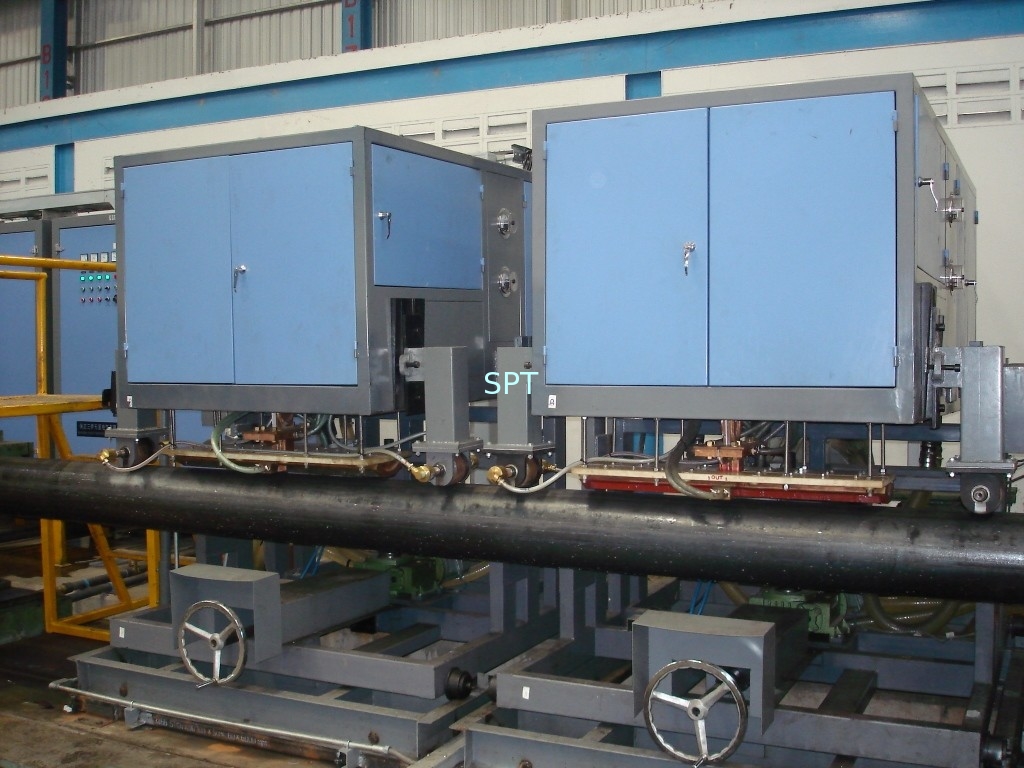

①Configuration: 600kW seam annealer 1 unit (3 sets)
②Model: KGPS-600kW/1kHz 2 set
KGPS-600kW/2kHz 1 set
③Temperature setting scope: 600~950℃
④Temperature control precision: ±1%
⑤Heating seam width: >20mm
⑥Cooling method: air-water cooling
①Calculation conditions: A. Type of pipe: round pipe B. Power: 1800KW; C. Annealing temperature rise: 950℃.
②Annealing speed:
Wall thickness (mm) |
3×600KW annealing speed (m/min) |
③Note:
The application of seam annealing method promotes steel pipe quality level. Induction heater is the main part of steel pipe induction annealing equipment, which heat the pipe seam welded and quenched to critical temperature, this process can reduce welding stress and potential crack, and the produced close grains structure can guarantee producing tenacious steel pipe meeting all standard specifications. With the advantage of seam rapidly sectional heating, the oxydation and deformation of steel pipe can be made to be the minimum, and the precise diathermancy make the close grains in seam area conformity with its parent material.
