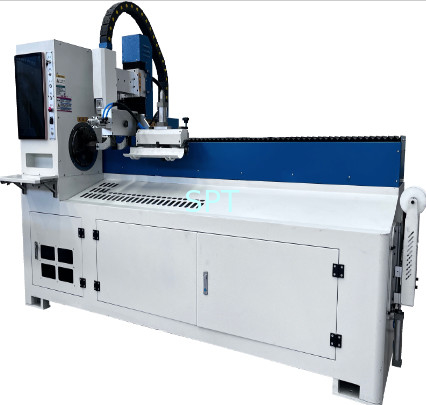

Pipe Cutting machine:
• The action of the machine includes four stages: automatic feeding, feeding, cutting and discharging.
• System control: Taiwan Fengwei system, used for machine function control, including time, speed and proportional control.
• Control panel: The machine operation panel adopts Taiwan Weiluntong. Color touch screen operation interface; manual, motor start, all settings and other selection switches.
• Safety device: The equipment uses safety doors and electrical interlocks to achieve safe operation. When personnel enter the maintenance safety door and open, the equipment is in a stopped state.
• The feeding and sawing unit adopts Japanese Panasonic servo system.
• The sawing motor uses Siemens motors and the inverter uses Delta.
• Pneumatic parts adopt Taiwan Yadeke series.
Technical parameters:
• Cutting length: the shortest 15mm, the longest 2500mm.
• Length * width * height (mm): 14500 * 4500 * 170
• Pipe range: round pipe diameter 10mm-90mm, square pipe 70*95mm
• Wall thickness range: 0.5mm-6mm
• Without dragging function: material head size ≥15mm, tail residue ≥65mm
• With dragging function: material head size ≥15mm, tail residue: ≥20mm
Note: The dragging function is only applicable to products with a cutting length greater than 160 mm.
• Dimensional tolerance: +/- 0.3 mm
• Total power (including deburring machine): 20.54 kW
• Estimated power consumption (including deburring machine): 16.5 kW
• Air pressure requirement: 8 bars air pressure
• Hydraulic oil tank: 200L
• Hydraulic oil cooling method: air cooling
Cutting efficiency comparison table (The statistics in this table are the theoretical maximum cutting efficiency, and the actual cutting efficiency allows a 15% floating range.)
Speed Refernce | Material | Thick(mm) | ||||||||||||
Pcs/cut | 15mm | 500mm | 1000mm | 1500mm | 2000mm | 2500mm | ||||||||
cut | Pcs | cut | Pcs | cut | Pcs | cut | Pcs | cut | Pcs | cut | Pcs | |||
1 | 733 | 733 | 630 | 630 | 535 | 535 | 442 | 442 | 380 | 380 | 361 | 361 | ZSTE340 | 1.00 |
2 | 733 | 1465 | 630 | 1260 | 535 | 1069 | 442 | 884 | 380 | 760 | 361 | 722 | ZSTE340 | 1.00 |
3 | 733 | 2198 | 630 | 1890 | 535 | 1604 | 442 | 1326 | 380 | 1139 | 361 | 1083 | ZSTE340 | 1.00 |
4 | 733 | 2930 | 630 | 2520 | 535 | 2138 | 442 | 1768 | 380 | 1519 | 361 | 1444 | ZSTE340 | 1.00 |
5 | 733 | 3663 | 630 | 3150 | 535 | 2673 | 442 | 2210 | 380 | 1899 | 361 | 1805 | ZSTE340 | 1.00 |
6 | 733 | 4396 | 630 | 3780 | 535 | 3208 | 442 | 2651 | 380 | 2279 | 361 | 2165 | ZSTE340 | 1.00 |
