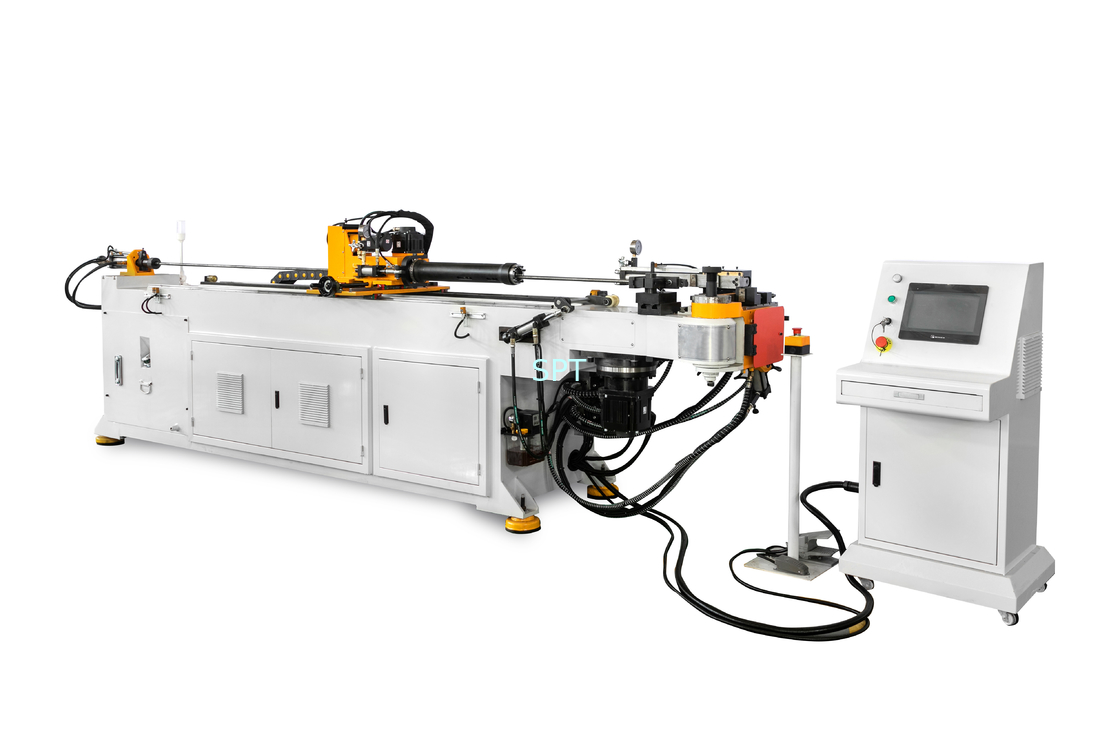

DW50CNC 2A1S Pipe Bending Machine

•Max. pipe diameter (iron pipe) : Φ50×3mm(Limiting Angle)

•Max passing distance : 2200mm

•Max. angle of bend: 190°

•Max. bending radius: 250mm

•Bending speed: 85°/S

•Rotary speed: 200°/S

•Feeding speed: 1000mm/S

•Bending accuracy: ±0.15°

•Rotary accuracy: ±0.1°

•Feeding accuracy: ±0.1mm

•Power of rotary servo motor: 750w

•Power of feeding servo motor: 1kw

•Motor power: 5.5kw

•Hydraulic working pressure: 12Mpa

•Number of bend to be set for a pipe fittings: 32

•Number of pipe files to be set: 350 sets

•Machine dimension: 3500×880×1380mm

•Machine weight: 1800KG

• Power: 380V(Three-Phase), Frequency: 50HZ

•Bending mode: hydraulic cylinder

•Rotary mode: servo motor

•Feeding mode: servo motor

•Other actions: hydraulic cylinder

•Cooling system: air cooling system

•Operation language:Chinese/English
