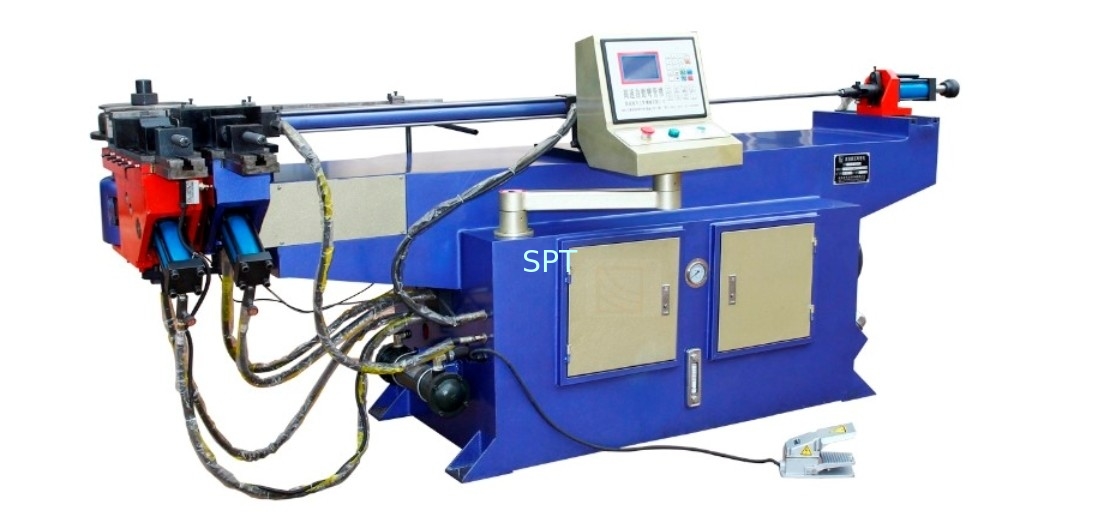

DW50NC Pipe Bending Machine

DW50NC Pipe Bending Machine
DW50NC Pipe Bending Machine

Large Image :  DW50NC Pipe Bending Machine Get Best Price

Product Details:
Place of Origin: China
Brand Name: SPT
Certification: CE, ISO
Model Number: 50NC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Payment Terms: TT LC
Contact Now
Detailed Product Description

•Max. pipe diameter (iron pipe): Φ50×2mm

•Max. through effective distance: 2200mm

•Max. angle of bend: 190°

•Max. bending radius: 250mm

•Max.Bending speed: 150°/S

•Oil pump:23L

•Bending accuracy: ±1°

•Motor power: 5.5kw

•Hydraulic working pressure: 12Mpa

•Number of bend to be set for a pipe fittings:16

•Number of pipe files to be set: 16×16 sets

•Machine dimension: 3000×700×1200mm

•Machine weight: 1220KG

•Bending method: Hydraulic pressure+Rack drive
