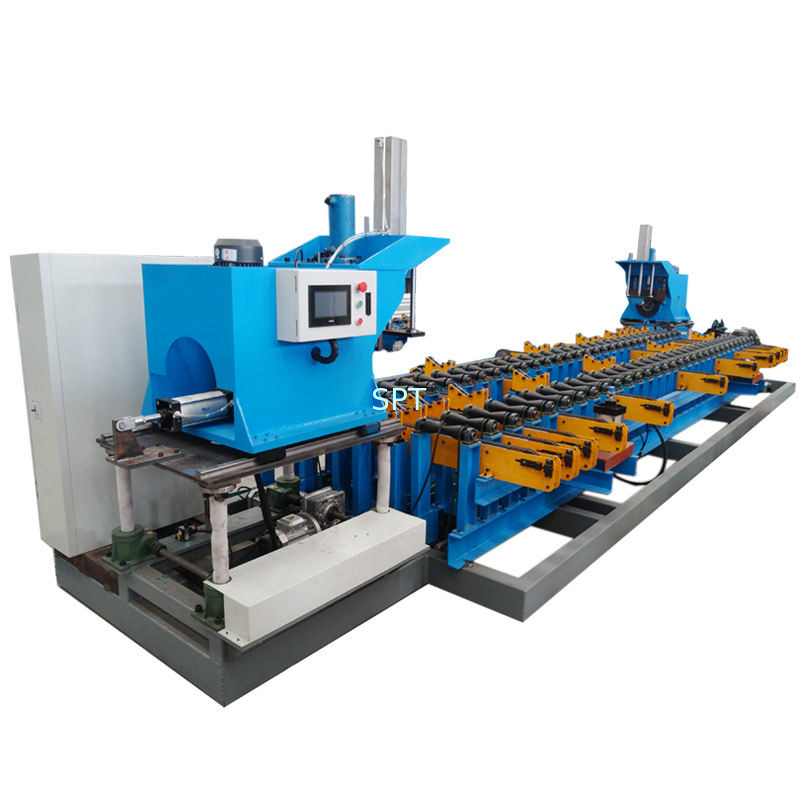

Automatic Grooving & Punching Production Line

Automatic Grooving & Punching Production Line
Automatic Grooving & Punching Production Line

Large Image :  Automatic Grooving & Punching Production Line Get Best Price

Product Details:
Place of Origin: China
Brand Name: SPT
Certification: CE, ISO
Model Number: CBZDYC200
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Exporting Package
Payment Terms: TT LC
Contact Now
Detailed Product Description
Dimension: 1000*600*1300mm Frequency: 50Hz
Grooving Pitch: 1.25-3.5mm Max. Grooving Diameter: 50mm
Max. Grooving Length: 200mm Motor Power: 2.2KW
Package: Wooden Case Power Source: Electric
Product Name: Pipe Threading And Grooving Machine Spindle Speed: 50-400rpm
Threading Pitch: 1.25-3.5mm Voltage: 220V
Weight: 120kg

Automatic Grooving & Punching Production Line 0



Feeding System | Laser Cutting & Holing System Conveying & Sorting System | Grooving System





Suited Pipe Size: Φ 20-220mm
X-Axis Distance: 200mm | Y-Axis Distance:6500mm Z-Axis Distance: 120mm |
X&Y Axis Position Accuary: +/-0.05/1000mm
X&Y Axis Re-Position Accuary: +/-0.03/1000mm
X&Y Axis Max.Running Speed: 70m/min
Acceleration: 1Gm/s² | Laser Power: 2 KW
Chucking Max. Turning Speed: 100r/min
Gross Power: 17 KW | Control System: Bochu Power Supplied Request: 380V/ 50Hz
Tailings' Length: ≧90mm

Estimated Machine Size: L8.9*W1.35*H1.75m



Working Ends

Automatic Grooving & Punching Production Line 1

Automatic Grooving & Punching Production Line 2
