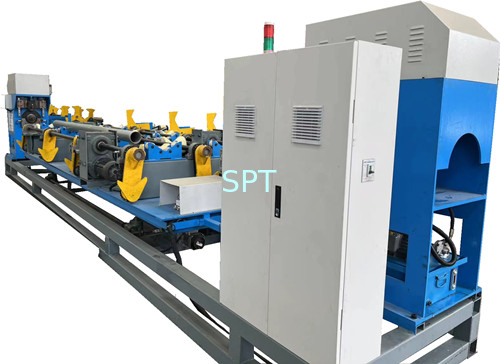

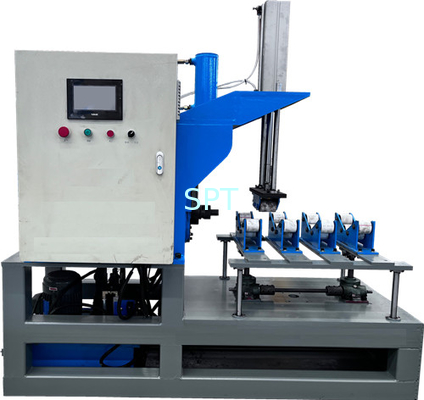

1.Equipment Overview

1)This grooved press is an integrated machine developed , which is used to jointing project for metal pipes connection, instead of fully manual operation.  a better tool equipment for prefabricated project.

2),Specifications: DN65-DN200, length 3.0m-6.0m, thickness 7.5mm or less.

2,Main technical details:

1,Model: CBZDYC200

2,Processing scope:Diameter DN65 ~ DN200, length 1.6m ~ 6.0m, thickness 7.5mm or less.

3,Power Request: 10KW.

4,Outline size: Length 9 meters * Width 5 meters * Hight 2 meters

5,Processing efficiency:Normally takes 30 seconds for one piece for different suited diameter size.

6,Specifications for pressure wheel and knurling wheel :

No. 1 :DN65, DN80

No. 2 :DN100, DN125, DN150

No. 3: DN200

7,Accompaning extra parts: one set of pressure wheel & knurling wheel.

Working Ends
