Light Pole Production Line
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Features: | High Efficiency, Precise Casting, Easy Operation | Application: | Street Lighting Pole Production |
|---|---|---|---|
| Control System: | PLC | Dimension: | 5000*2000*1500mm |
| Frequency: | 50Hz | Material: | Steel |
| Model: | LPM-01 | Power Supply: | 380V/50Hz |
| Processing Type: | Casting | Production Capacity: | 100-150 Poles Per Hour |
| Total Power: | 25kW | Voltage: | 220V |
| Warranty: | 1 Year | Weight: | 2000kg |

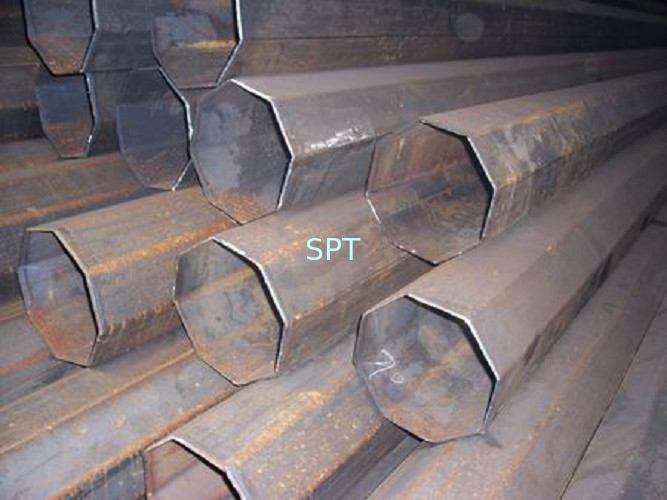

Light Pole Production Line
- TDT44-6×1600 CNC Decoiling-levelling-cutting Line
Main structure and data of the production line
(1)The process flow:
Coil saddle → coil charging wagon → decoiler → plate guiding → centering → straightening machine → length measuring device →cut to length →blanking and stacking
(2)Coil parameter
●plate thickness 1.5～6mm
●Material Q345
●yield limit σs ≥345 Mpa；σb ≥600 Mpa
●Coil width 800～1600 mm
●Coil inner dia ф610,ф762 mm
●Coil outer dia ф1200～ф2000mm
●Coil weight ≤30ton
(3)Plate parameter after straightening
●plate thickness 1.5～6mm
●plate length 2000～14000mm
●plate width 800～1600 mm
●cut to length accuracy:
In length ≤±1.5mm(2000mm plate length)
In diagonalline≤±2.5mm(2000mmplate length)
(4)Line speed 20m/min
(5)Leveling accuracy 1.5mm/ m2
(6)Transverse shears
●Number of consecutive Shearing: 20times /min
(7)Stacking unit
●Length adjustment range: 2000～14000mm
●Width adjustment range 800～1600mm
●Max stacking weight 10ton
●Max stacking height 300mm
(8)Production line direction From left to right
- Power supply AC380V／50Hz 3-phase 4-wire
- BS-Q17-8×2400 steel plate bevel automatic shearing production line
Main parameter of machine:
| No. | Name |
Parameter |
Unit |
Value |
Remarks |
| 1 |
Fixed loading frame |
Max.plate length | Mm | 14000 | |
| Height of working table | Mm | 1045 | |||
| Max.plate width | mm | 2000 | |||
| 2 |
Infeeding frame |
Length |
mm | 16100 | |
|
Back gauge distance |
mm | 180-1600 | |||
|
Throat depth |
mm | 1600 | |||
|
Infeeding speed |
Mm/s | 150 | |||
|
Height of throat |
mm | 1045 | |||
|
Power of driving motor |
KW | 1.5 | XWD1.5-3-1/17 | ||
|
Infeeding plate specifications |
mm |
6×2000× 14000 Q345 |
|||
| 3 |
Shearing machine |
Height of shearing | mm | 1045 | |
|
Shearing speed |
Mm/s | 150 | |||
|
Power of driving motor |
KW | 5.5 | |||
|
Throat depth |
mm | 400 |
Max. cutting Plate width 400mm |
||
|
4 |
Movable Discharging frame |
Stretching length | mm | 14580 | |
|
Pushing length |
mm | 4860 | |||
|
Height of receiving plate |
mm | 1045 | |||
| 5 |
Fixed Discharging frame |
length |
mm | 14055 | |
|
Height of receiving plate |
mm | 1045 | |||
| 6 |
Push out device |
length |
mm | 13200 | |
|
Height of pushing Roller plane |
mm | 970 | |||
| 7 |
Catching Plate device |
Stroke of horizontal cylinder |
mm | 700 | |
|
Stroke of vertical cylinder |
mm | 60 | |||
|
Height of sucker |
mm | 1105 | |||
| 8 |
Collecting Plate frame |
Plate range |
Mm | 180-1600 | |
| 9 |
Guide rail |
Length | Mm | 38000 | |
| Center distance | Mm | 1000 | |||
| Height of guide rail | mm | 76 | |||
| 10 |
Motor of Hydraulic system |
Model | Y132M-4 | ||
| Power | kw | 7.5 | |||
| Model | Y160M-4 | ||||
| Power | Kw | 11 | |||
| 11 |
Oil pump |
Model | 25MCY14-1B | ||
| Displacement | l/min | 40 | |||
| Model |
32MCY (泵头 pump head) |
||||
| 12 |
Overall dim. |
Length | Mm | 38000 | |
| Width | Mm | 5880 | |||
| Height | mm | 1805 | |||
| 13 | Weight | kg | 28000 | ||

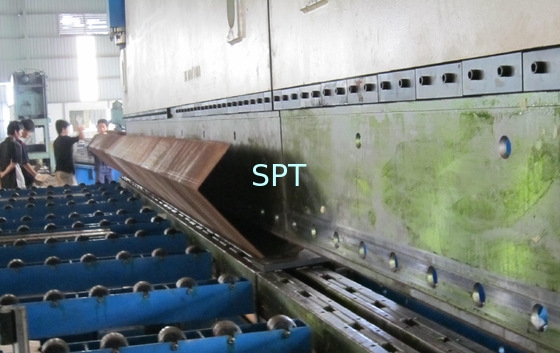

- CNC Electrical-hydraulic Proportional Press Brake
Main Specifications

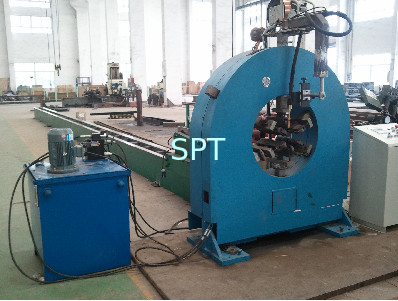

- Pole Jointing Welding Machine Model: TDY46-16/500×14000
Main technical parameters(DGH500*10-14000)
| No. | Name | Value | Unit | Remarks | |
| 1 | Jointing seam length | ≤14000 | mm | ||
| 2 | Max.thick.of jointing seam material | 10(pole dia.≥250 mm) | mm | Q235 | |
| 3 | Size of main machine head(L*W*H) | 2500*2100*850 | mm | ||
| 4 | Working table size(L*W*H) | 16500*600*550 | mm | ||
| 5 | Max.jointing seam dia. | φ500 | mm | ||
| 6 | Min.jointing seam dia. | φ100 | mm | ||
| 7 | Max.pressure | 20 | MPa | ||
| 8 | Working pressure | ≤5 | MPa | ||
|
9 |
Overall dim. |
L | 34000 | mm | |
| W | 2100 | mm | |||
| H | 2500 | mm | |||
| 10 | Weight | 12500 | kg | ||
| 11 | Welding technology | Thin wire submerged arc welding | |||
| 12 | Rated welding current | 500A/630A/600A | |||
| 13 | Wire dia. | φ1.6; φ2.0 | |||
| 14 | Welding speed | 1.5－3.0m/min | |||
| 15 | Speed of carriage | 0.6-8.0m/min | Stepless adjusting speed | ||
| 16 | Rated input capacity | 55KVA | |||
- Y41-315/1400×4000 Straightening press
Main technical specifications:
| No. | Item | Specifications |
Unit |
|
|
Nominal pressure | 3150 | KN |
|
|
Max. stroke of pressing head |
800 | mm |
|
|
Depth of throat | 750 | mm |
|
|
Width of working table |
1400 | mm |
|
|
Length of working table |
4000 | mm |
|
|
Distance between lower surface of piston to working table |
1800 | mm |
|
|
Fast down | ≥80 | mm |
|
|
Working speed | 3.5 | mm |
|
|
Returning speed | ≥80 | mm |
|
|
Power of motor | 15 | KW |
