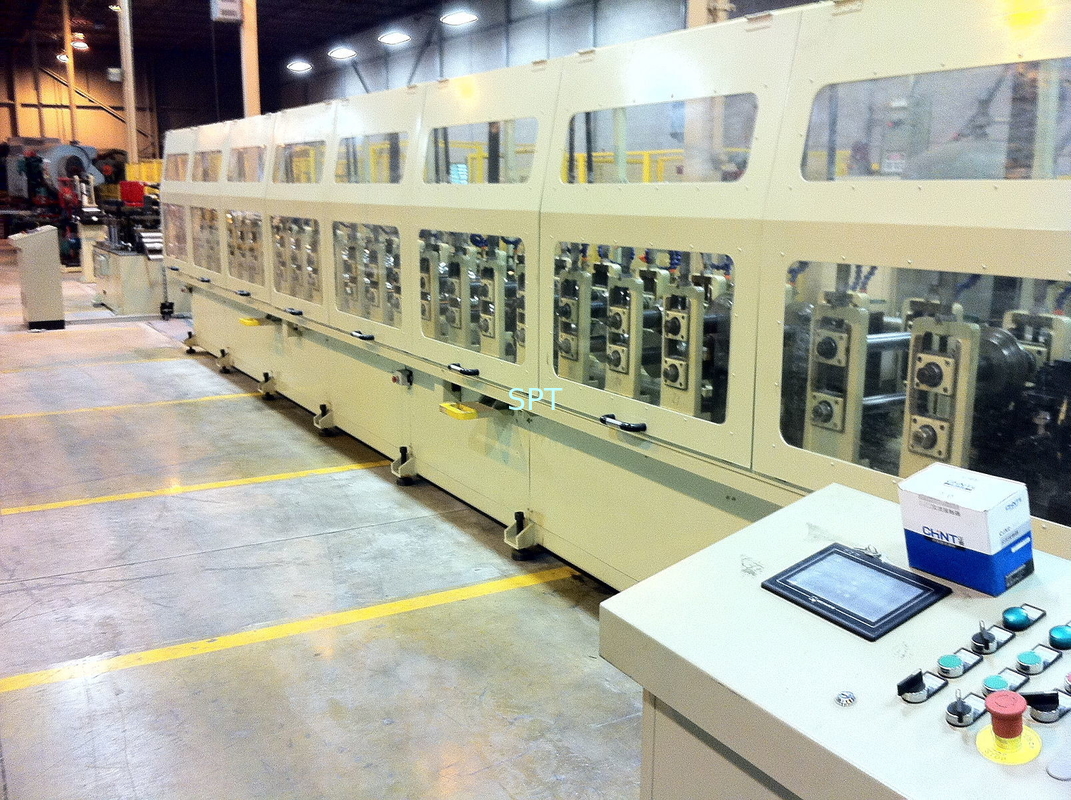

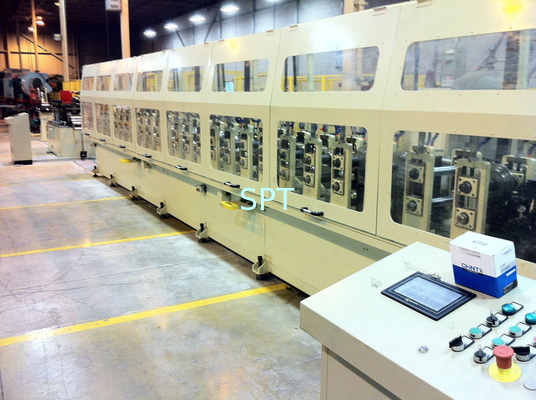

Roll Forming Machine for Door Frame

Roll Forming Machine for Door Frame
Roll Forming Machine for Door Frame Roll Forming Machine for Door Frame

Large Image :  Roll Forming Machine for Door Frame Get Best Price

Product Details:
Place of Origin: China
Brand Name: SPT
Certification: CE, ISO
Model Number: 16
Payment & Shipping Terms:
Minimum Order Quantity: 1
Payment Terms: TT LC
Contact Now
Detailed Product Description
Control System: PLC Cutting Type: Hydraulic Cutting
Dimension: 8000*1200*1500mm Forming Speed: 0-15m/min
Main Motor Power: 7.5kw Material: Steel
Model: CRFL-001 Roller Stations: 12
Thickness: 0.3-2.0mm Voltage: 380V, 50Hz, 3 Phase
Warranty: 1 Year Weight: 5 Tons
Width: 100-1000mm

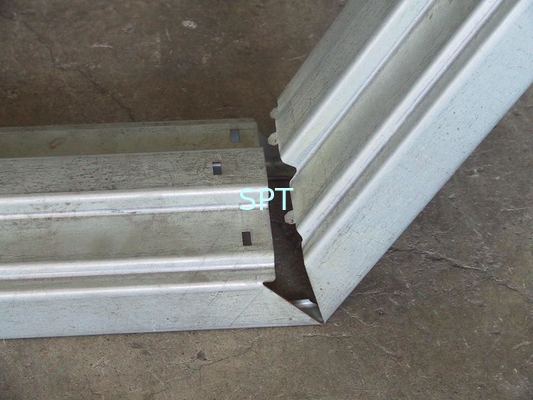

  • Roll Forming Machine for Door Frame
  • Frame joint knockdown for male & female (Top left & Right)
  • Some door leaf hinges left side & some door right side hinges.
  • Door frame width 150/180/240mm - Motorized adjustable
  • Door frame with rubber group
  • Hinges location different size hinges, sometimes 3 or 4 hinges pleasing
  • Strike plate (for Lock) one number
  • Screw holes wall for each side four numbers or five numbers.
  • Support holes (floor side) for spreader bars
  • Material thickness 1.2-1.6mm
  • Total length of necessary from coil stand to run out table how much the length ( wanted your design not more than 12 L.M )
  • Our profile length 2m-3m (adjustable)
  • Horizontal (top side) frame width 800mm – 2500mm
  • Vertical (left & right side) frame long 2000mm to 3000mm
  • Door Panel thickness 45mm.

Note : Our Machine should have punching system, bending & sharing in one machine.

The machine should be semi automatic.
