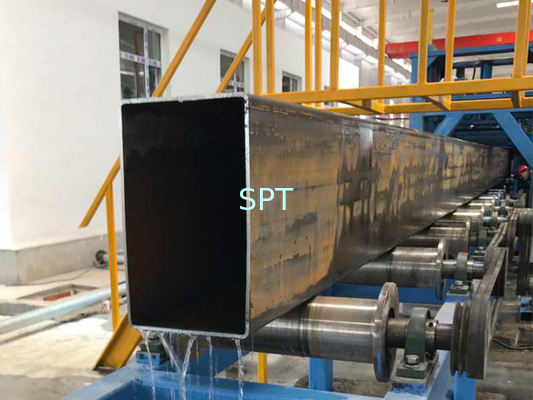

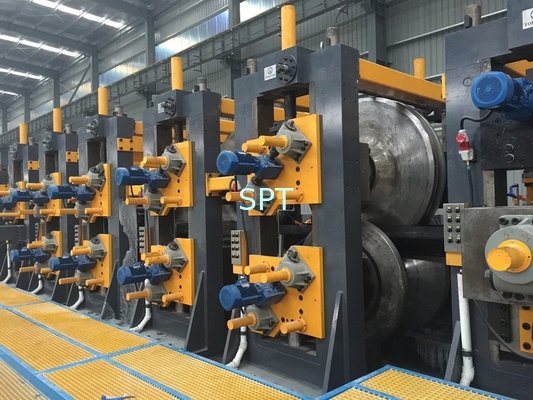

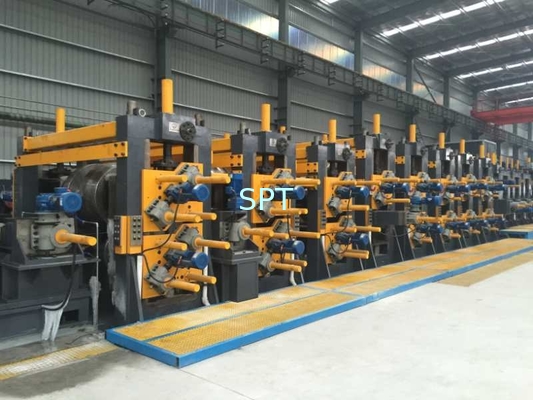

DFT Directly Square Tube Forming Line
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Control System: | PLC | Material: | Carbon Steel, Stainless Steel, Alloy Steel |
|---|---|---|---|
| Pipe Diameter: | 6-1820mm | Pipe Length: | 4-12m |
| Power Supply: | 380V/50Hz | Product Name: | DFT Pipe Mill |
| Roller Adjustment: | Hydraulic | Surface Treatment: | Varnish, Galvanized, 3PE, FBE, Epoxy Coating |
| Wall Thickness: | 0.5-60mm | Warranty: | 1 Year |
| Welding Type: | Submerged Arc Welding, High Frequency Welding |
The new forming process is patented product, representing the most advanced technology level in the world.
A high return on the investment. (High efficiency and high capacity, 3-4 persons operating in the line)
Great flexibility in production,with a time of 20-30 minutes for roll change. (It achieves non-stop changing size of same specification but different thickness.)
High precision (increasing by 70%-90% based on products GB/T6728, EN10219-2 and EN10305-5)
Intelligent control (Combined with our company's 20-year practical experience, the commonality of the hole database has reached more than 99%.)
Easy operation and maintenance (Multilingual remote control and maintenance)
Main technical specifications:
| Model | Specification (mm) |
Thickness (mm) |
Speed (m/min) |
Welding power | Installed capacity(kw) | Floor space(m²) |
| SMDT280 | 30²-70² | 1-4 | 30-90 | 400KW | 800 | 10X110 |
| SMDT320 | 40²-80² | 2-6 | 30-80 | 400KW | 1000 | 10X120 |
| SMDT400 | 45²-100² | 2-6 | 25-70 | 500KW | 1200 | 10X140 |
| SMDT600 | 60²-150² | 2-7 | 20-60 | 600KW | 1800 | 12X160 |
| SMDT800 | 80²-200² | 3-10 | 15-40 | 800KW | 2200 | 15X180 |
| SMDT1000 | 100²-250² | 3-12 | 15-35 | 800KW | 2400 | 16X200 |
| SMDT1200 | 125²-300² | 4-14 | 10-30 | 1000KW | 3000 | 18X220 |
| SMDT1600 | 200²-400² | 4-16 | 10-30 | 1200KW | 3600 | 20X240 |
| SMDT2000 | 250²-500² | 5-20 | 10-25 | 1800KW | 4000 | 24X250 |
