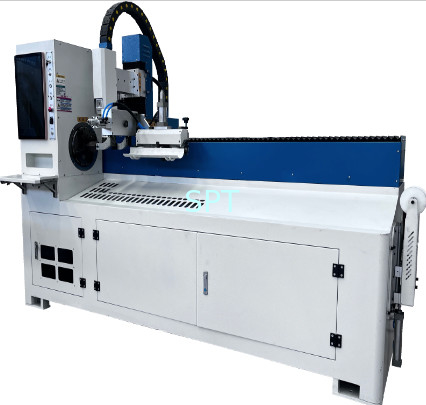

Metal Pipes Laser Cutting Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Accuracy: | High | Cutting Area: | 3000*1500mm |
|---|---|---|---|
| Cutting Thickness: | 0.1-20mm | Laser Source: | CO2/Fiber/UV/YAG |
| Material: | Metal | Speed: | Fast |
| Type: | Laser Machine | Warranty: | 3 Year |
| Working Voltage: | 220V/380V/Customized |
1.Equipment Overview
1.1 Automatic Laser Cutting Machine is used to cutting metal pipes in short, with automatic feeding system and laser cutting syetem.
1.2 Specifications:DN65-DN200, length 6.0m, thickness 7.5mm or less.
2.Main technical details:
| Model No.:6022L |
| Suited Pipe Size: Φ 20-220mm |
| X-Axis Distance: 200mm | Y-Axis Distance:6500mm |
| Z-Axis Distance: 120mm | |
| X&Y Axis Position Accuary: +/-0.05/1000mm |
| X&Y Axis Re-Position Accuary: +/-0.03/1000mm |
| X&Y Axis Max.Running Speed: 70m/min |
| Acceleration: 1Gm/s² | Laser Power: 2 KW |
| Chucking Max. Turning Speed: 100r/min |
| Gross Power: 17 KW | Control System: Bochu |
| Power Supplied Request: 380V/ 50Hz |
| Tailings’ Length: ≧90mm |
