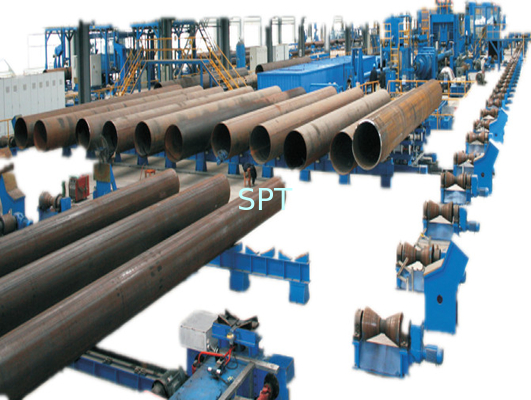

JCOE Pipe Production Line

1. Summary of machine

1.1 Usage and features

The purpose of machine is to mill and consecutively process welding detected steel plates to be beveled edges according to the need of steel pipe at both sides of length direction of steel plate.

1.2Technology performance

Technical parameter

① Width of steel plate: 1275～4500mm

② Thickness: 6～50㎜

③ Length of steel pipe: 8000～12000mm

④ Length of starting weld tab: 300mm

⑤ Length of blowing-out of arc: 400mm

⑥ Beveled edges type: x type, flat-back type(flat-straight type), and single bevel edge type.
