Product Details:
Payment & Shipping Terms:
|
Roller Shaft: | Cr12 | Roller Shaft Diameter: | φ50mm |
---|---|---|---|
Roller Material: | Cr12 | Wall Thickness: | 0.3-2.5mm |
Diameter: | 2-6mm | Roller Shaft Surface Roughness: | Ra0.4 |
High Frequency Power: | 150-250KW | Tolerance: | ±0.05mm |

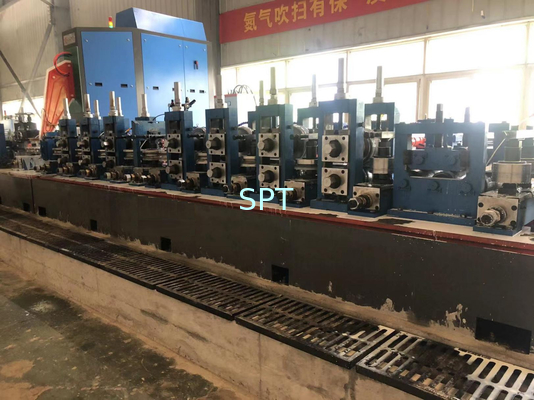

ERW tube mill, also known as tube line or steel pipe making machine, is an efficient and cost-effective machine for producing high-quality steel pipes. It is equipped with 13-18 roller stations and can reach a forming speed of 120-150m/min. The wall thickness of the steel pipe produced by this tube mill can be adjusted from 0.3-2.5mm, with the roller shaft diameter of φ50mm and pipe diameter of 2-6mm. It is an ideal choice for producing high-precision steel pipes.
Parameter | Specification |
---|---|
Roller Diameter | φ18-φ32mm |
Roller Material | Cr12 |
High Frequency Power | 150-250KW |
Forming Speed | 120-150m/min |
Roller Stations | 13-18 Stations |
Material | Steel |
Roller Shaft Surface Roughness | Ra0.4 |
Diameter | 2-6mm |
Roller Shaft Surface Hardness | HRC58-62 |
Tolerance | ±0.05mm |
Product | ERW tube mill, Pipe production line, ERW tube mill line |
SPT 32 tube mill is a pipe mill with ERW tube mill line from China. It is certified with CE and ISO, and has a minimum order quantity of 1. It is packed with exporting package and the delivery time is 30 days. Payment terms are TT or LC. The wall thickness range is from 0.3-2.5mm, and the roller shaft diameter is φ50mm. The roller shaft surface roughness reaches Ra0.4, and the hardness reaches HRC58-62. Its forming speed is 120-150m/min.
Tube Mill is a type of pipe mill line provided by SPT, with model number 32. It is certificated with both CE and ISO, and the minimum order quantity is 1. The packaging details are in exporting package, and it will take 30 days for delivery. Payment terms are TT or LC. The diameter of the tube mill ranges from 2-6mm, and the roller shaft diameter is φ50mm. The material is steel, and the roller shaft is Cr12 with a surface roughness of Ra0.4.
Tube Mills are packaged in a way to ensure they are protected from the elements and arrive safely and in good condition.
Once the Tube Mill arrives at its destination, the packaging should be inspected for any signs of damage or tampering. If any damage is found, contact the carrier immediately.
A1: The Brand Name of this Tube Mill is SPT.
A2: The Model Number of this Tube Mill is 32.
A3: This Tube Mill is made in China.
A4: This Tube Mill has CE and ISO Certifications.
A5: The Minimum Order Quantity for this Tube Mill is 1.
