FRP Sheet Forming machine

FRP Sheet Forming machine
FRP Sheet Forming machine FRP Sheet Forming machine FRP Sheet Forming machine FRP Sheet Forming machine FRP Sheet Forming machine

Large Image :  FRP Sheet Forming machine Get Best Price

Product Details:
Place of Origin: China
Brand Name: SPT
Certification: CE, ISO
Model Number: 1500
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Exporting Package
Delivery Time: 35days
Payment Terms: TT LC
Contact Now
Detailed Product Description
Voltage: 380V/50Hz/3Phase Power(w): 45KW
Condition: New Plastic Type: PVC,PP/PE,PET,PE,PS
Warranty: 12 Months Keyword: FRP Sheet Machine

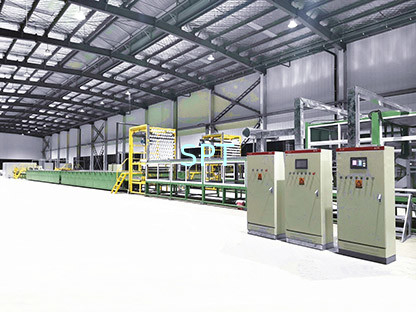

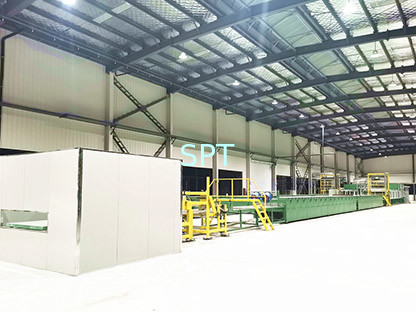

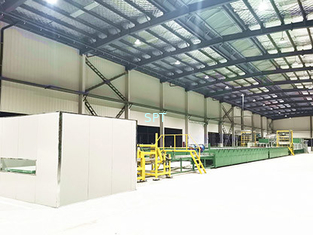

FRP sheet machine

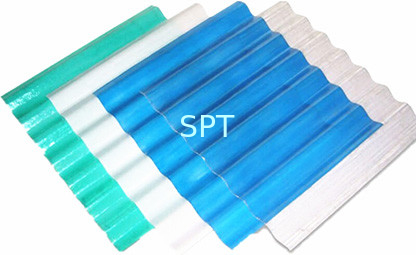

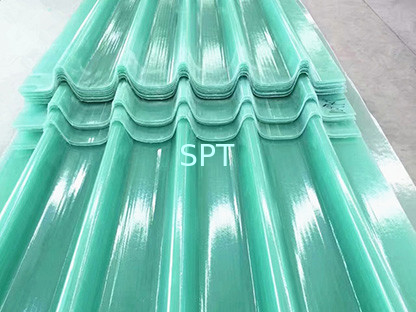

This production line can produce corrugated roof sheet with color & transparent, common flat sheet, decorative sheet and so on.

1 Installation Basic request

Installation environment requirement:
Ground flatness within 5CM
Ground hardened layer>20CM (at less 8CM)
Line Installing place requet :
Width>5m,length>56m,height>5m
Power requirement: 380V 50HZ
Transformer capacity: 100KW (Running is about 25--45KW)

2 FRP sheet specification:

As customer request sheet profiles (Different profile, need change different roller Tools)
Sheet expanding width <1500mm
Sheet Wave height: maximum 140mm
Thickness:0.4-5mm
Production speed: 2-12m/min(Depend on the sheet thickness and worker skill)

Operators Required: 3-6 person

  1. List of Main Units
  1. Basic ground:Adjust levelness of machine
No Name Spec. Quantity
1 Adjustable basic runway Square pipe 1set
2 Horizontal adjust bolt M16 1set
  1. Tank Area:
No Name Spec. Quantity
1 Resin storage tank 1000L Carbon steel, 1set
2 Mixing tank 1000L Carbon Steel, including mixing motor 1set
Special pumps Special pumps for resin transfer 1set
3 Connecting pipes 1set
4 Stainless valves 1set

Reference: Resin storage tank speed is adjustable; special resin transfer pumps makes loading resin much easier; two mixing tanks match multiple requirement of formula


  1. Metering Area:
No Name Spec. Quantity
1 CAM type rotor pump 1set
2 Three cylinder metering pump. Three cylinder metering pump. (curing agent, initiator, color paste) color paste metering pump for the latest diaphragm metering pump 1set
3
 Adjustable speed power agitator 1set
4 Feeding pipe fittings Stainless valve , carbon steel pipe 1set

Reference: Metering area can be controlled in a touch-type UI screen; Programmed PLC makes operating much easier.

  1. Fiber Roving Chopping Area
No Name Spec. Quantity
1 Glass fiber yarn cluster placement rack 1set
2 Fiber yarn tube stainless steel 1set
3 Glass fiber screw short cutting knife stick 1set
4 polyurethane roll (polyurethane layer thickened, can be reused many times) 1set
5 Mirror press yarn. 1set
6 short fiber special loose yarn axis. 1set
7 glass fiber smoothing device. 1set
8 high performance cylinder. 1set
9 Spare blade, press plate 1set
  1. Impregnation Platform Area
No Name Spec. Quantity
1 PET under film rack. 1set
2 Bow type film special flattening roller. 1set
3 Resin width control plate. 1set
4 Resin thickness controller. 1set
5 Controllable temperature platform 16 meters 1set
6 Cutting machine, rubber knife thickness. 1set
7 The sheet edges along. 1set
  1. Longitudinal fiber wire feeder
No Name Spec. Quantity
1 Wire rack 1set
2 Line walking platform 1set
  1. Thickness Control Area
No Name Spec. Quantity
1 PET film rack 1set
2 Film feeding crane 1set
3 Bow type film special flattening roll 1set
4 Inspection platform 1set
5 Flexible composite roll 1set
  1. Resin curing Area (Heating)
No Name Spec. Quantity
1 Area I 12m (upper and lower circulating air duct, high temperature fan, electric heater) 1set
2 Area II 12m (upper and lower circulating air duct, high temperature fan, electric heater) 1set
3 Tool Rack 1set
4 Floating upper Tools 1set
5 Stainless steel roller for forming sheet 1set
  1. Air Cooling Area
No Name Spec. Quantity
1 Air cooling rack 8-16m 1set
2 Air cooled fan 1set
3 Fan frame, stainless steel bracket 1set
  1. Guide area
No Name Spec. Quantity
1 Board walking guide equipment. 1set
  1. Dust-free cutting area
No Name Spec. Quantity
1 ,No dust, no power, no noise cutting equipment. Square pipe 1set
  1. Traction area
No Name Spec. Quantity
1 Four independent pinch wheels equipped with cylinders 1set
2 Active traction roll 1set
3 Control system Digital communication with transverse cutting 1set

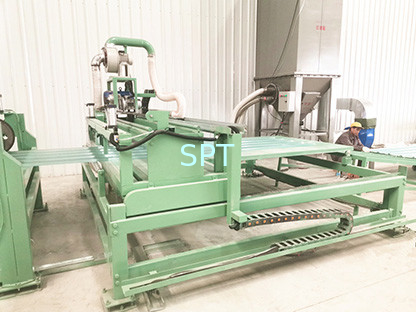

  1. Cross Cutting Area
No Name Spec. Quantity
1 Rack drive synchronous car 1set
2 Chain transverse cutting car chain transverse cutting car 1set
3 Duct cleaning Vacuum with the car once 1set
4 Guide Rail Special round rod guide rail 1set
5 Control System With traction digital communication, smooth, same speed operation. 1set
  1. Vacuum Cleaner
  2. Finished Products Area
No Name Spec. Quantity
1 Vacuum cleaner Double cloth bags 1set
2 Duty Transfer Pipe Vacuum pipe. 1set
No Name Spec. Quantity
1 Sheet Loading Car 6mx2 1set
  1. Tool
No Name Spec. Quantity
1 Tool Produced by CNC 4set
  1. Electrical System
No Name Spec. Quantity
1 Control cabinet Metering area control electrical cabinet 1set
2 Power cabinet 1set
3 General control cabinet 1set
4 Digital synchronous communication module Digital synchronous communication module 1set
5 Pulse length counting Pulse length counting 1set
6 PLC High speed multifunctional programmable controller 1set
7 7Contactless stopper Contactless stopper 1set
8 HMI Computer man-machine interface control 1set
9 Approach switch 1set
10 Electrical element Delixi 1set
11 Converter Digital communication frequency converter 1set
  1. Motor and reducer
No Name Spec. Quantity
1 Main Motor Wanxin Brand 1set
  1. Compressor
No Name Spec. Quantity
1 Compressor Two-cylinder air compressor 1set
