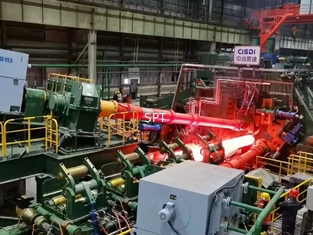

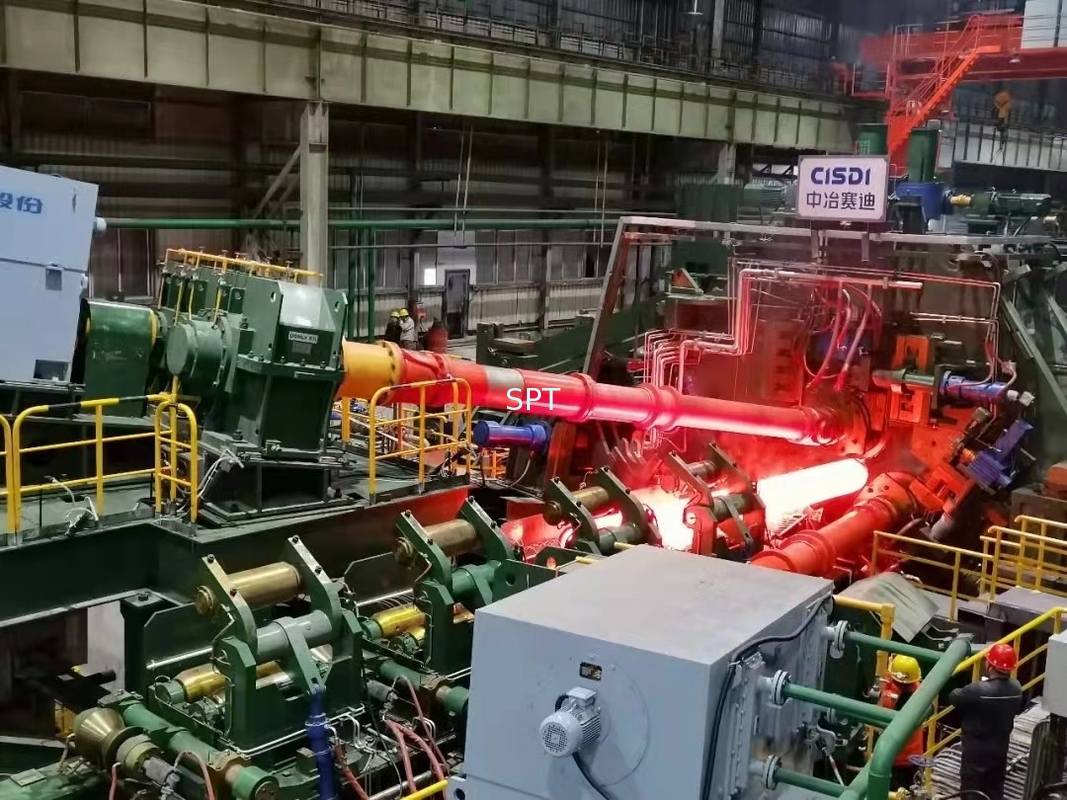

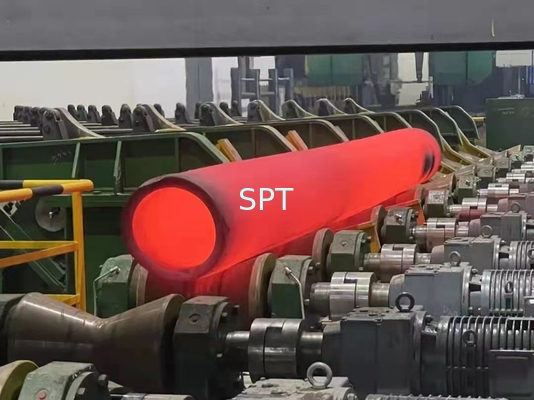

Seamless tube mill stainless seamless hot forming machine ss tube mill machine

Seamless tube mill stainless seamless hot forming machine ss tube mill machine
Seamless tube mill stainless seamless hot forming machine ss tube mill machine Seamless tube mill stainless seamless hot forming machine ss tube mill machine

Large Image :  Seamless tube mill stainless seamless hot forming machine ss tube mill machine Get Best Price

Product Details:
Place of Origin: China
Brand Name: SPT
Certification: CE, ISO
Model Number: 90
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Exporting Package
Delivery Time: 90days
Payment Terms: TT LC
Contact Now
Detailed Product Description

Seamless tube mill stainless seamless hot forming machine ss tube mill machine 0

Seamless tube mill stainless seamless hot forming machine ss tube mill machine 1



I. Purpose The round tube billet is pierced and rolled by the cross rolling method.

II. Basic parameters Material Steel grades: stainless steel, alloy structural steel assessment

Main production steel grades: Stainless steel grade: 304L, TP347, 316, 321, 2205, 2207, 904 as customer request Alloy steel: T22, T91, P22, P91 High temperature alloy steel: Inconel600

III. Technical specification

Tube billet Diameter Φ40－Φ60mm

Length 550-1600mm

Pierced tube Diameter Φ42－Φ63mm

Thickness 3.5-8mm

Length 1600-4600mm

Equipment composition

1. Entrance table of Piercer machine 2

. Main drive of Piercer machine

3. Main base of Piercer machine

4. Exit platform Part I for Piercer machine

5. Exit platform Part II for Piercer machine

6. Electrical control system
